Description

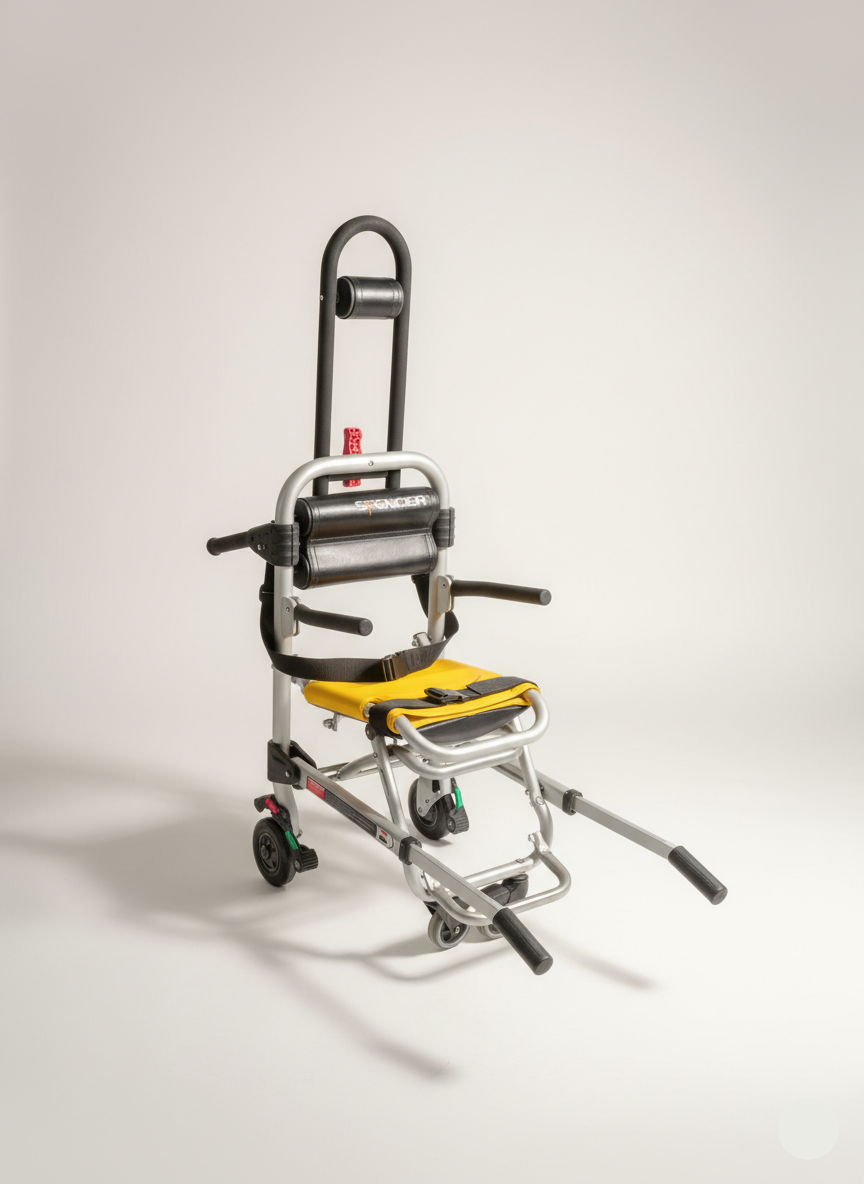

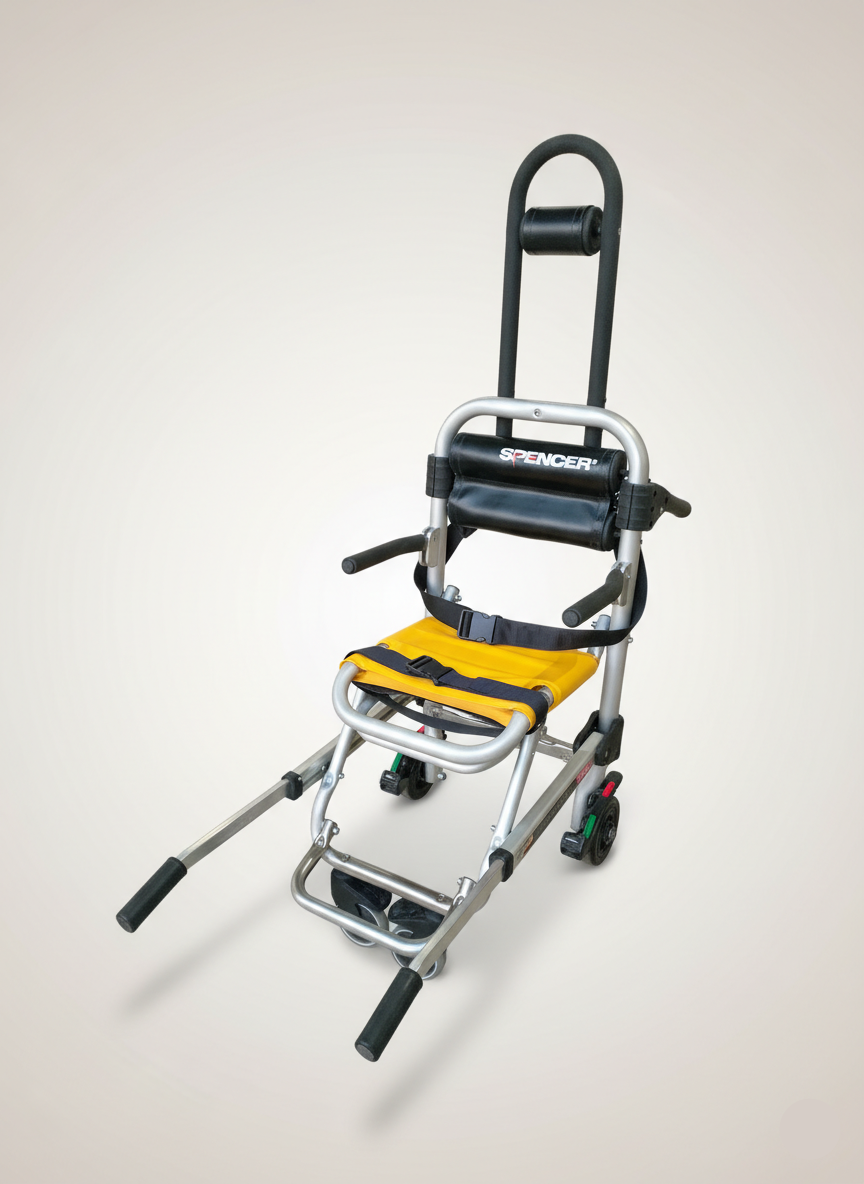

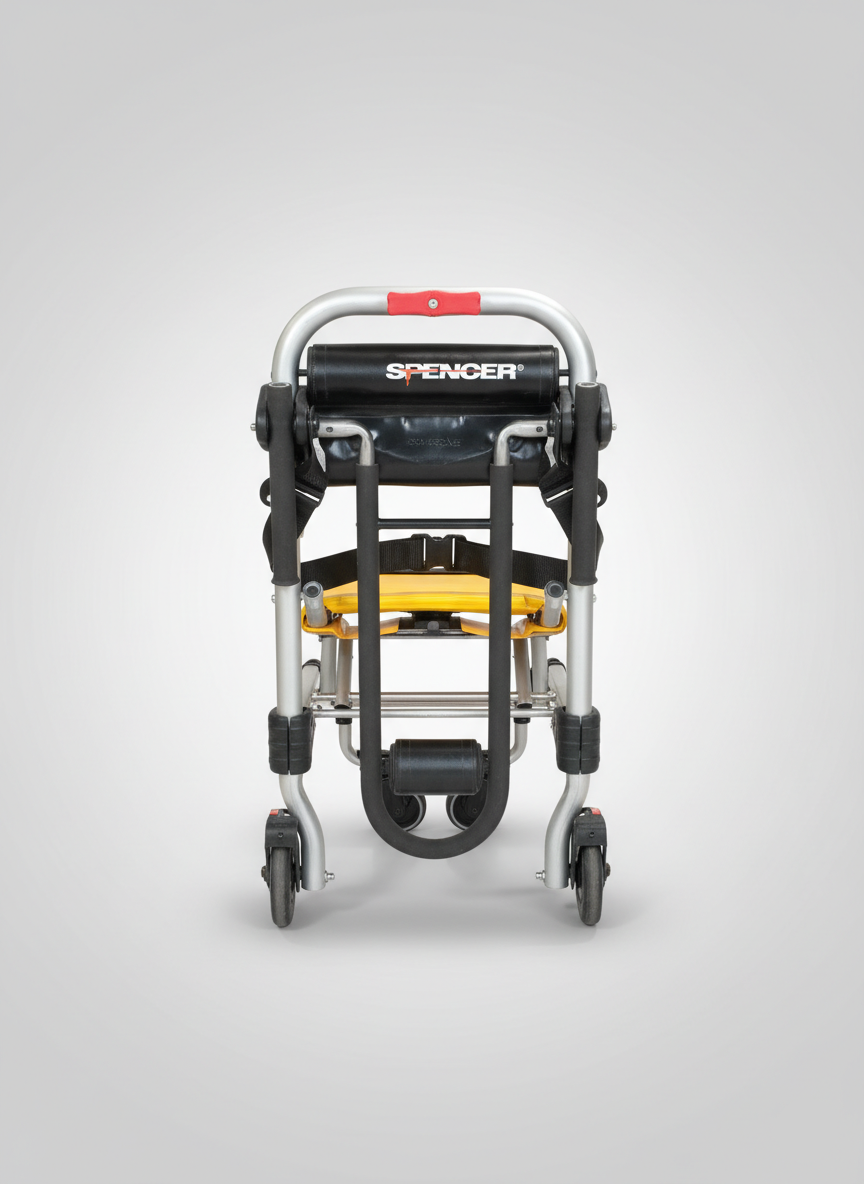

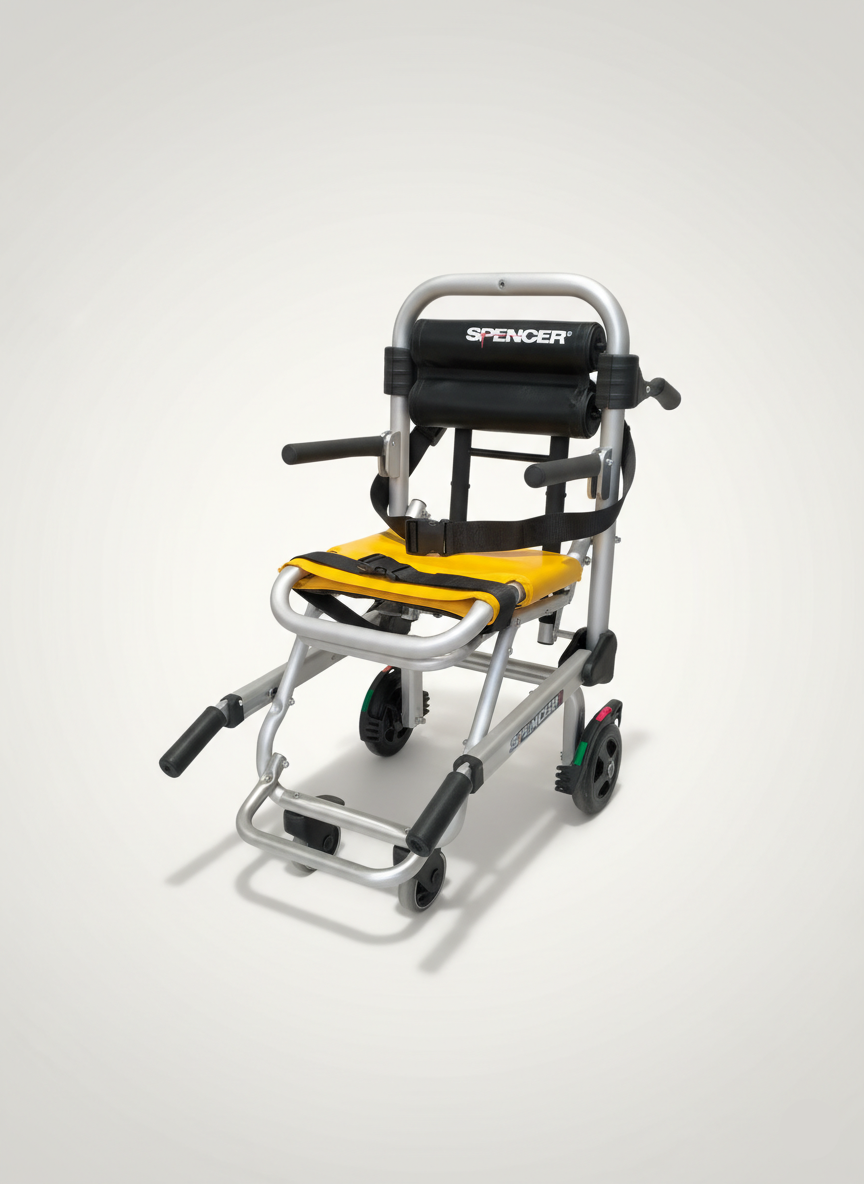

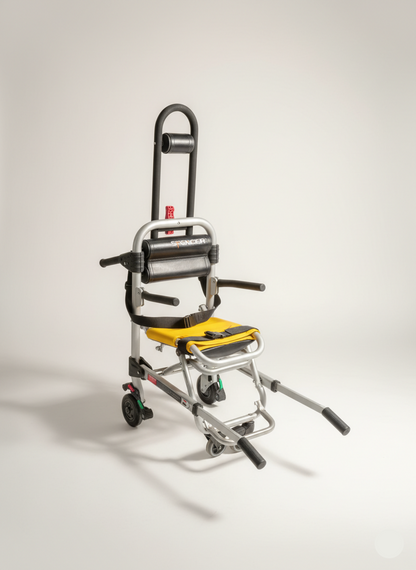

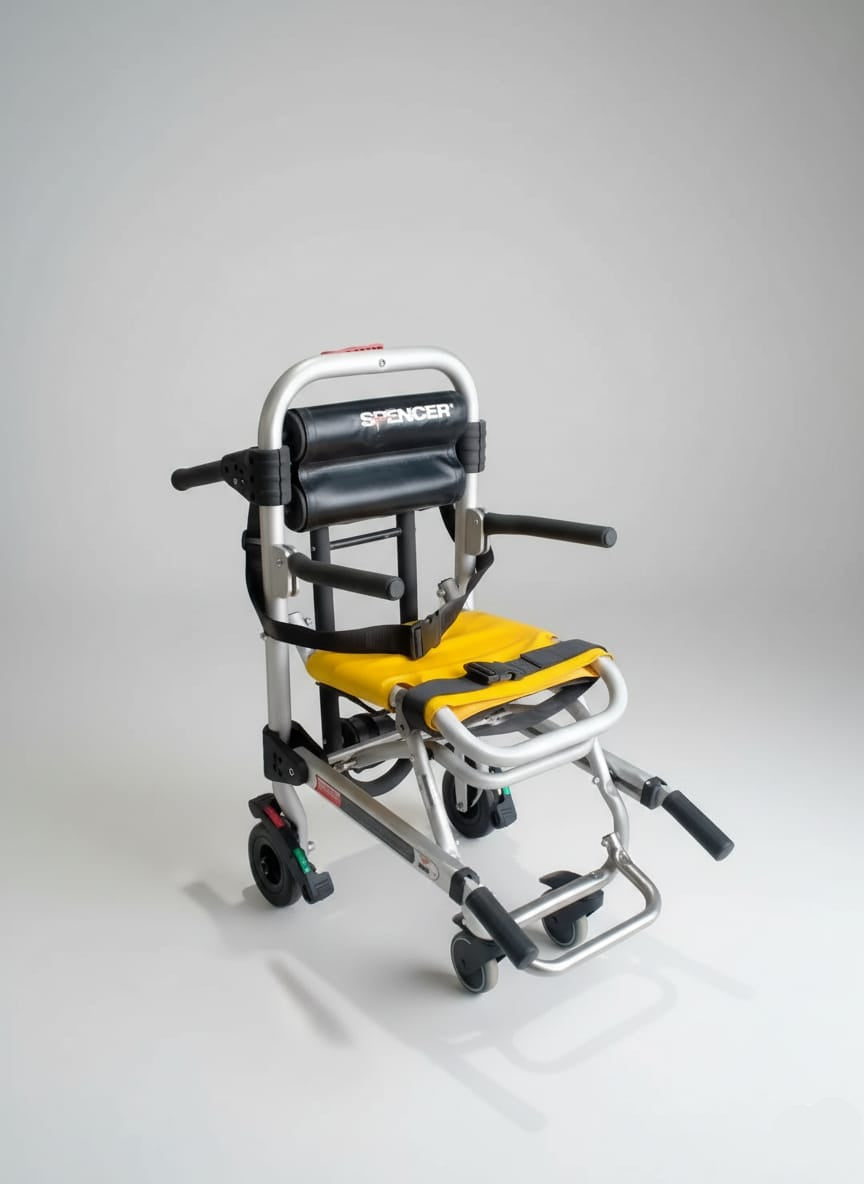

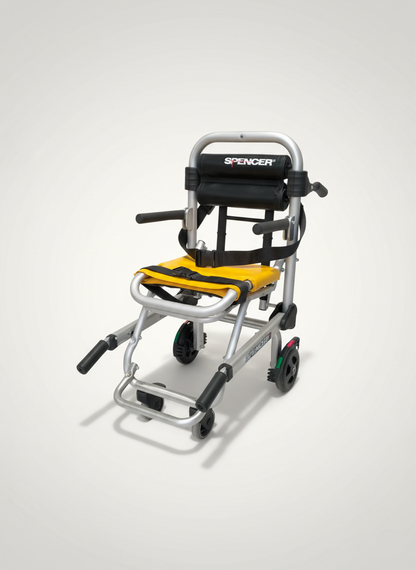

A transport chair designed for patient evacuation and transfer from the rescue site to the ambulance or to another transport device inside the vehicle. It features a strong yet lightweight frame with smart folding mechanisms to save space and facilitate lifting in emergency situations.
Specific Features
- Easy-to-clean PVC sheets
- 2 foldable rear handles to save space and facilitate lifting
- Front telescopic handles for easier lifting
- Telescopic handle locking system released by simple directional pressure
- Foldable for space saving
- Strong and lightweight frame
- Foldable footrest to enhance patient stability and comfort
- Self-positioning front wheels
- Soft backrest for increased patient comfort
- Independent rear wheel brakes, easy to operate
- Foldable headrests for enhanced comfort
Standard Equipment
- Integrated safety belts
- Headrest
Accessories
- 4BELL MAX fastener
Technical Data
Dimensions
- Length (handles closed): 750 ± 5 mm
- Length (handles opened): 1170 ± 5 mm
- Width: 510 ± 5 mm
- Height (headrest closed): 910 ± 5 mm
- Folded dimensions: 930 × 510 × 310 ± 5 mm
- Seat height: 480 mm
- Seat dimensions: 390 × 390 mm
- Backrest height from seat: 460 mm
- Backrest width: 440 mm
Wheels
- Rear wheels diameter: 150 mm
- Front wheels diameter: 100 mm
Materials
- Aluminum / Steel / PU / PVC
Weight & Capacity
- Weight: 12 ± 0.2 kg
- Loading capacity: 180 kg
