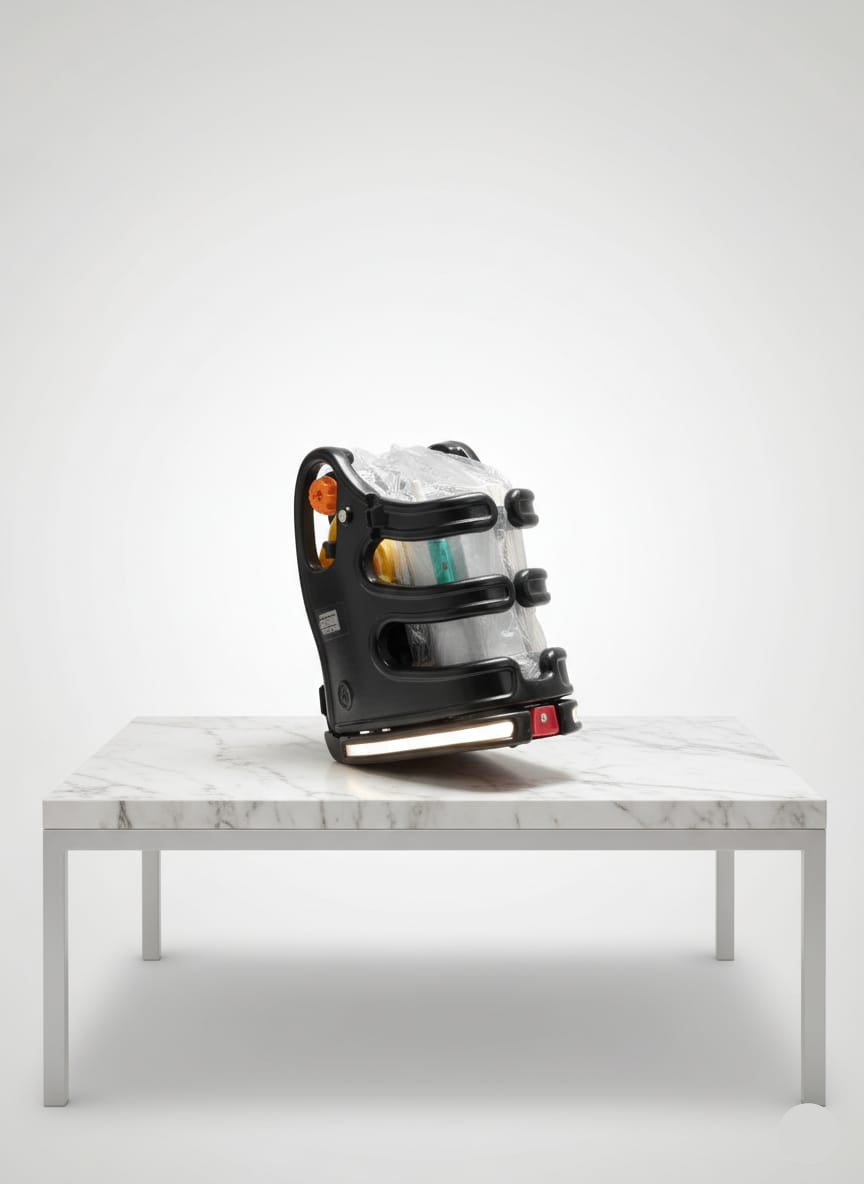

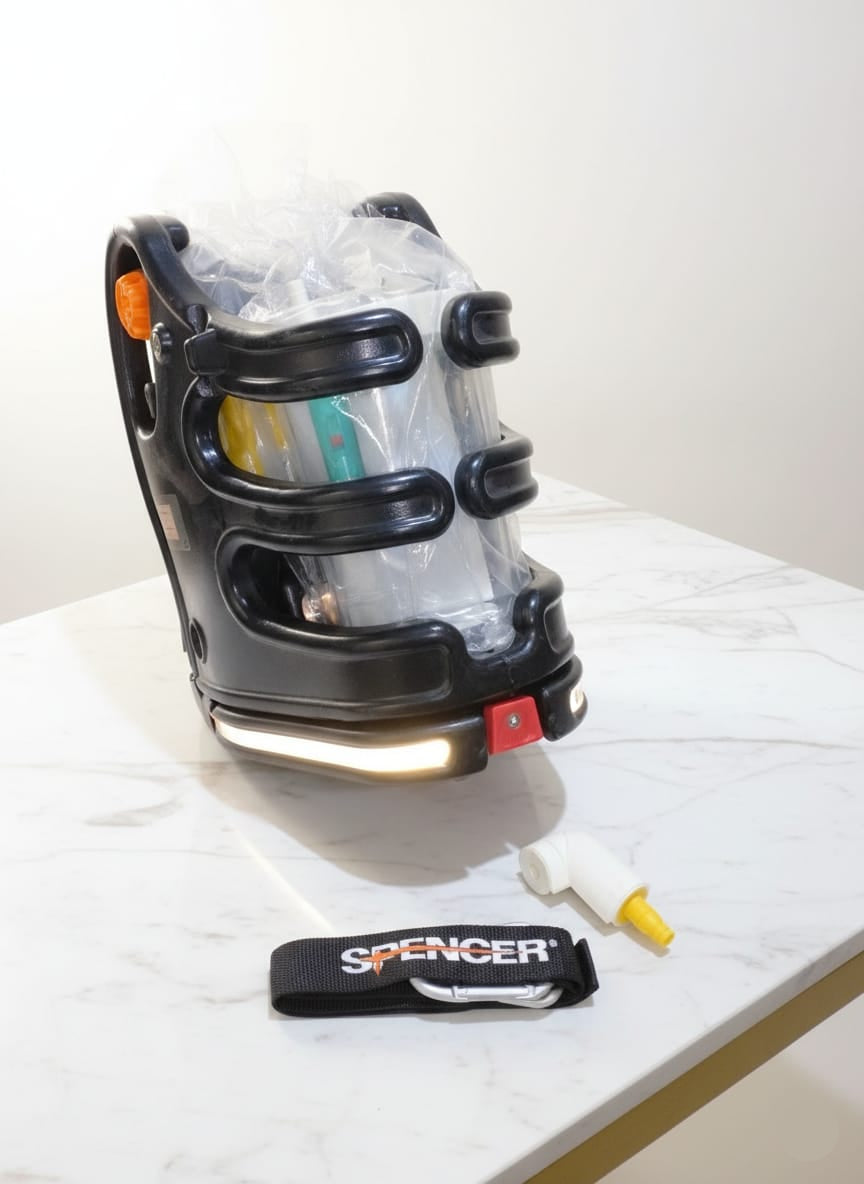

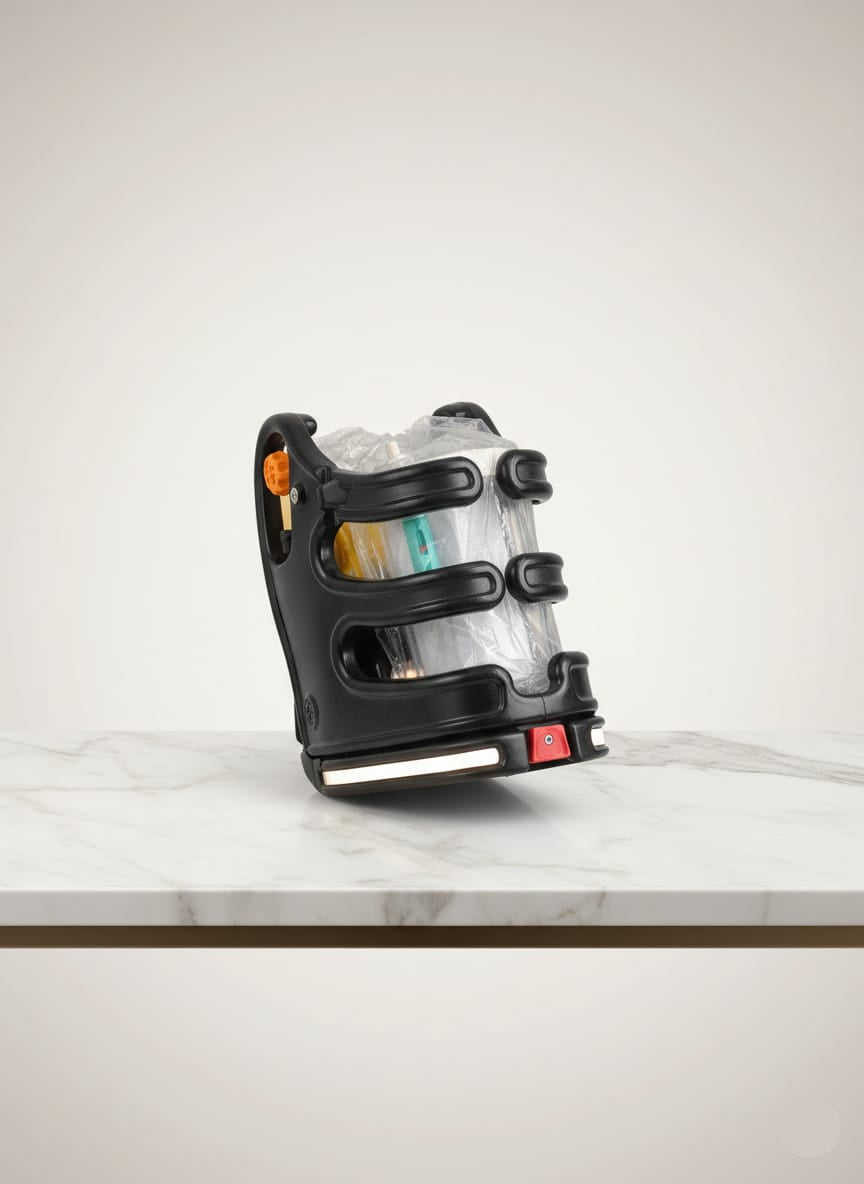

AMBUJET Suction Unit "Spencer"
AMBUJET Suction Unit "Spencer"
This high-performance portable medical suction device is engineered for efficient and rapid removal of fluids from the airway during emergency and clinical care. Its compact, lightweight design makes it ideal for use in ambulances, hospitals, clinics, and home healthcare settings.
The unit delivers strong, consistent suction performance with clear LED indicators for precise vacuum level monitoring. A shock-resistant protective housing safeguards the device against drops and impacts, while the integrated mounting and charging base allows quick and convenient battery recharging in compliance with ambulance standards.
Equipped with a rechargeable battery and built for reliability, this suction unit is a trusted solution for emergency response teams and healthcare professionals. It combines power, durability, and portability in one device that meets international medical standards.
Ideal for use in:
Emergency response, ambulances, hospitals, clinics, home care, and field medical units.
Key Features
- Lightweight and compact design for easy portability
- LED indicators for clear vacuum level monitoring
- High vacuum / high flow performance according to ISO classification
- Shock-resistant protective outer shell
- Fast attachment and release mechanism from the base
- Easy charging by simply placing the device on the docking base
Technical Specifications
Dimensions
- Device dimensions: 285 × 225 × 200 mm
- With mounting system: 320 × 250 × 200 mm
Weight
- Device weight: 2.4 kg
Performance
- Vacuum range: 50 to 550 mmHg
- Free flow rate: 32 L/min
- Noise level: 70 dB
Electrical Specifications
- Input voltage: 100–240 V AC
- Frequency: 47–63 Hz
- Max current: 0.75 A
- Power output: 12 V DC
- Max power consumption: 33 W
- Protection rating: IP12
Battery
- Type: 12 V DC Nickel-Metal Hydride (Ni-MH)
- Duty cycle: 30 minutes ON / 30 minutes OFF
- Charging time: 5 hours
Capacity & Tubing
- Collection canister capacity: 1000 ml
- Patient tube length: 1.8 m
Operating Conditions
- Operating temperature: 0°C to +45°C
- Storage temperature: –40°C to +70°C
- Humidity range: 0 to 95%
Medical Classification
- Class IIa Medical Device according to Directive 93/42/EEC
Standard Accessories
- Mounting base with integrated charging system
- Rechargeable battery
- Reusable collection canister
- Disposable patient tube (1.8 m)
- Shoulder strap for easy transport
✔ Compliant With
- ISO 10079-1
- EN 1789
