Portable Medical Bed
Portable Medical Bed

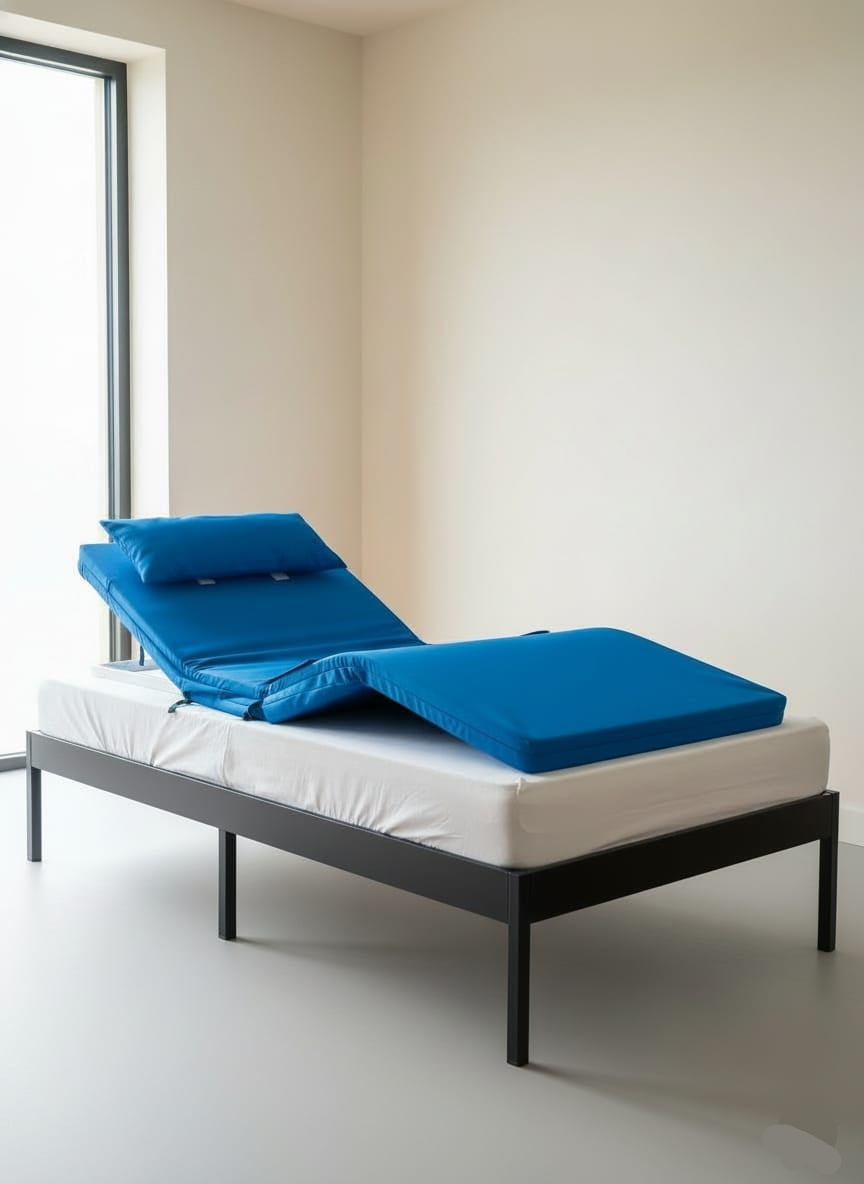

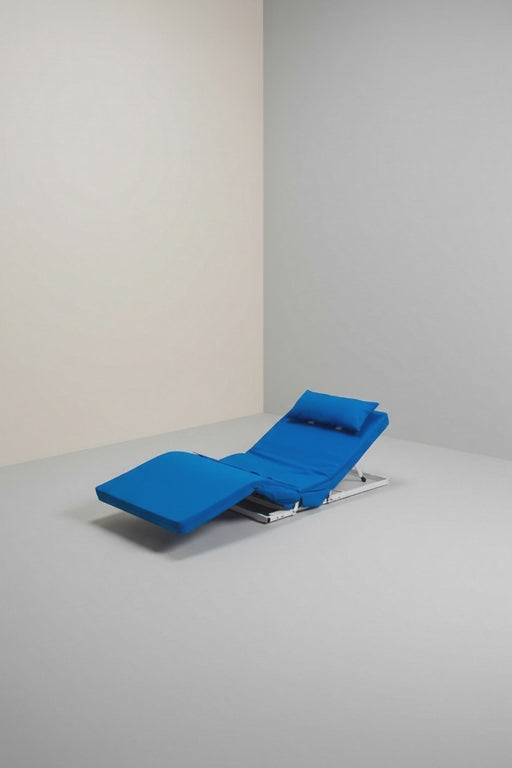

Electric Adjustable Medical Bed with Dual Motors This professional-grade electric bed combines precision engineering with practical functionality for medical and home care settings. Featuring a sturdy A3 steel frame with white powder coating, the bed measures 1930 × 800 mm and supports up to 100 kg. Dual 24V DC motors enable independent adjustment of the backrest (up to 70°), thigh section (up to 40°), and calf section (up to 18°), allowing customized positioning for comfort and therapeutic needs. The included 30 mm foam mattress provides essential support, while the universal 100–240V adaptor ensures compatibility worldwide. At just 25 kg, the bed remains manageable for installation and repositioning. This bed is an ideal choice for clinics, rehabilitation centers, elderly care facilities, and home care settings that require adjustable and reliable patient support.
Bed Dimensions
- Length: 1930 ±10 mm
- Width: 800 ±10 mm
- Height: 90 ±10 mm
Mattress Dimensions
- Length: 1930 ±10 mm
- Width: 800 ±10 mm
- Thickness: 30 ±100 mm
Backrest & Leg Adjustment Angles
- Back Frame Tilt: ≤ 70°
- Thigh Frame Tilt: ≤ 40°
- Calf Frame Tilt: ≤ 18°
Main Frame
- Material: A3 Steel
- Surface Treatment: White powder coating
Weight
- Overall Bed Weight: 25 kg
- Mattress Weight: 4 kg
Motor
- Quantity: 2 pcs
- Specification: 24V DC, 300N per motor
Adaptor
- Quantity: 1 pc
- Input: 100–240V ~ 50/60Hz 1.2A
- Output: 29V DC 1.8A
Load Capacity : 100 kg
Included Accessories:
- Bed mattress
- Pillow
- Remote control
