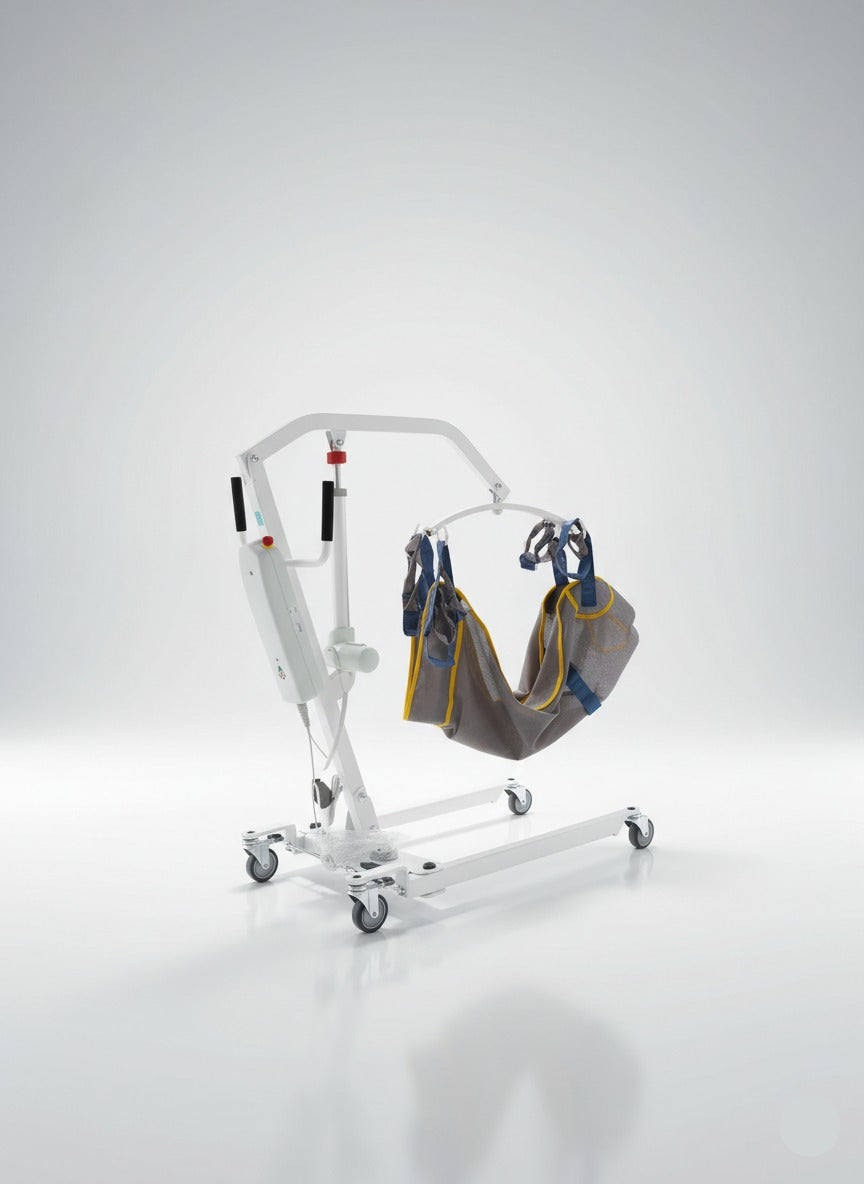

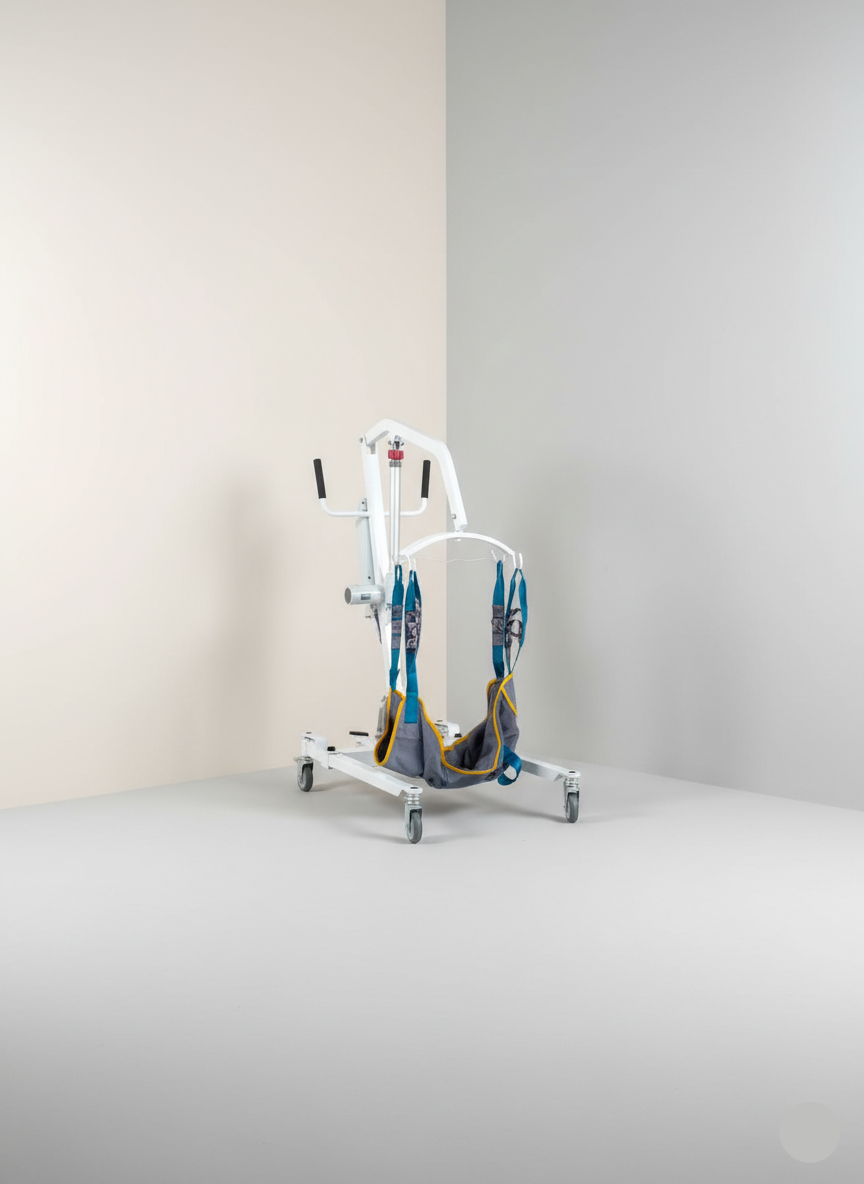

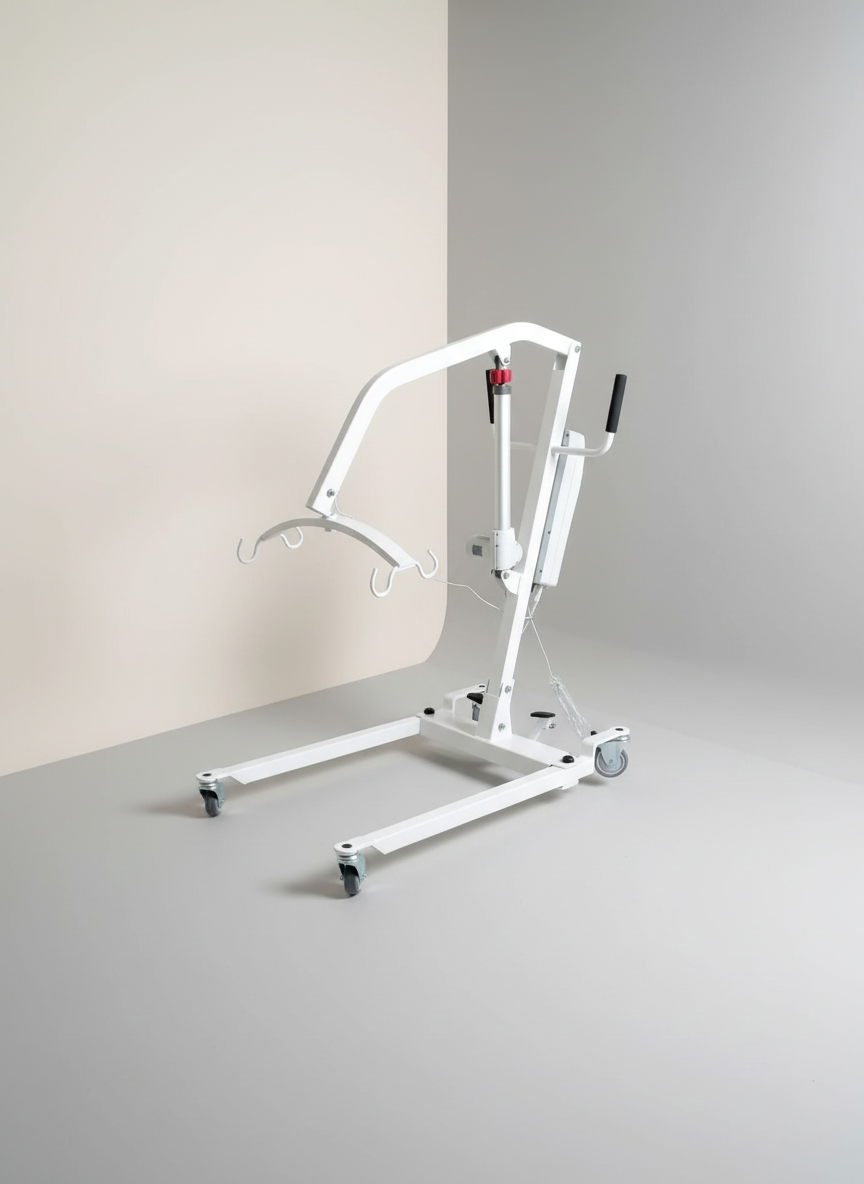

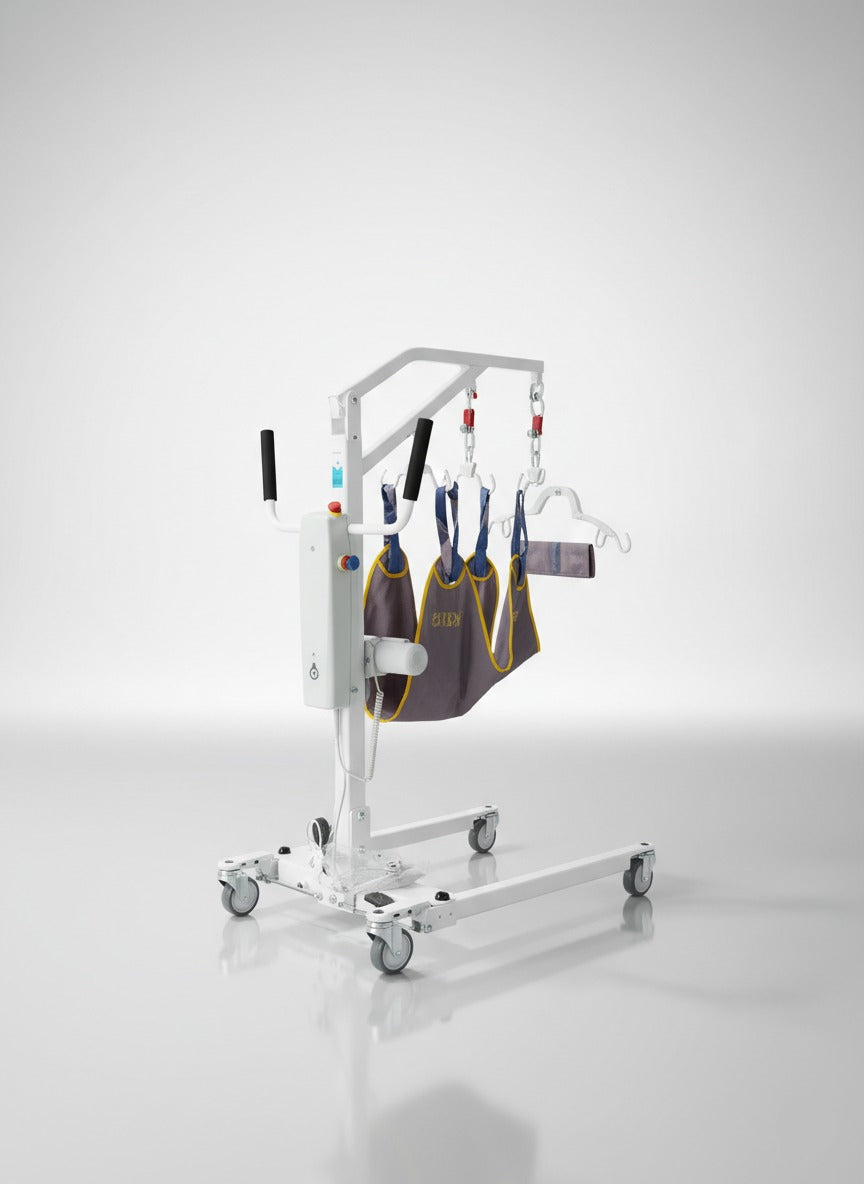

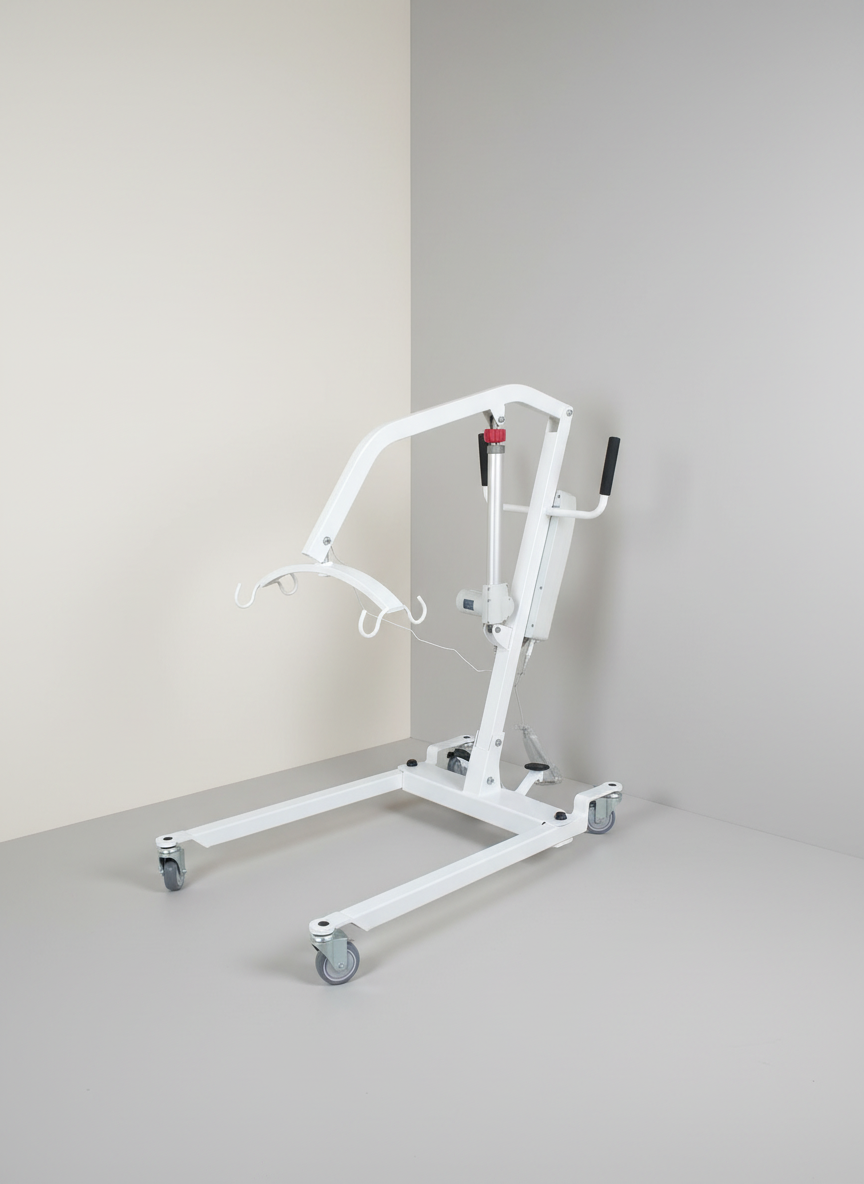

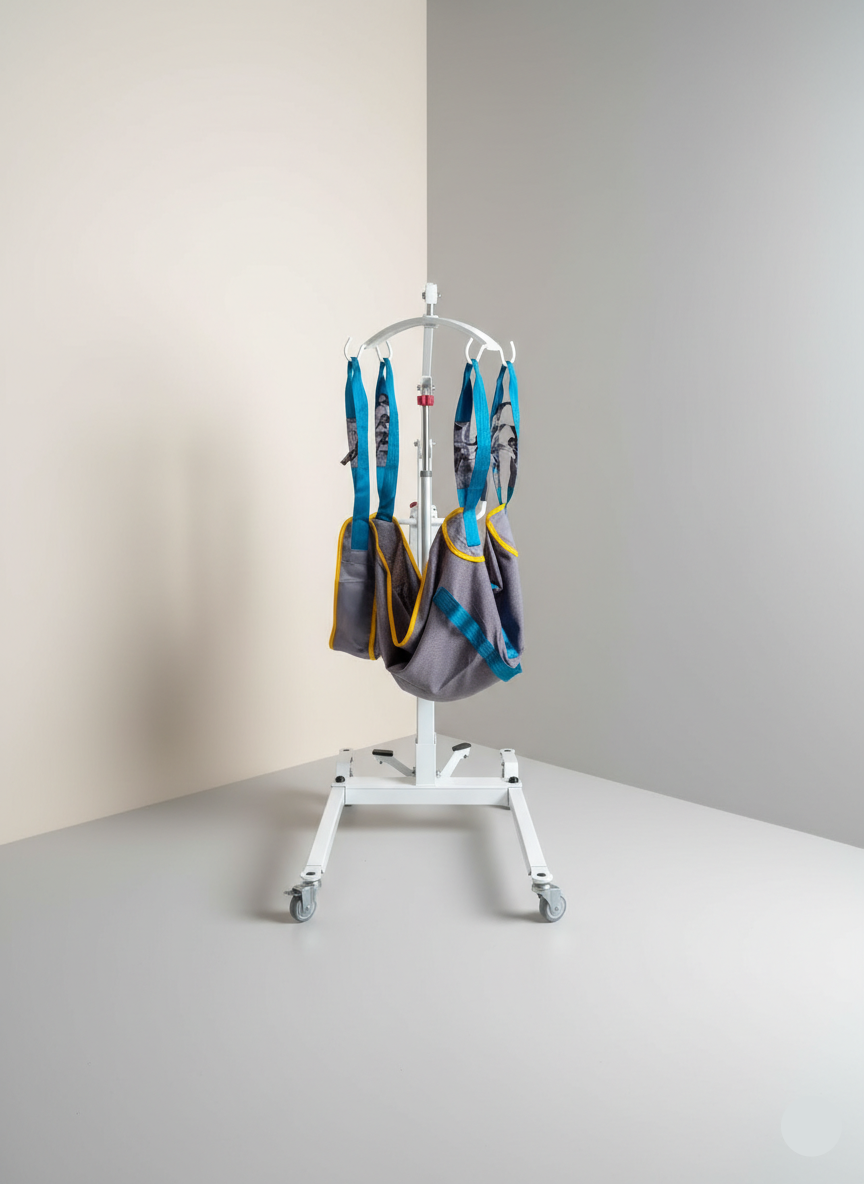

Patient lifting hoist engineered for safe, efficient transfers with a robust 200 kg weight capacity. Features a powerful 8000N electric motor and advanced lithium battery system (25.9V/4.4Ah) for reliable operation. The adjustable boom arm extends from 720–1640mm, accommodating various transfer heights and patient needs. Equipped with stabilizing leg supports (adjustable width 505–790mm) and smooth-rolling wheels—3-inch swivel front and 4-inch locking rear—for precise positioning and secure braking. Operates quietly at under 65dB, minimizing patient anxiety. Compact dimensions (1185×620×128–187.5mm) enable easy maneuverability through standard doorways and tight spaces. Universal 100–240V power input ensures global compatibility. Weighs 40kg for manageable transport between care settings.
- Loading Capacity: 200 kg
- Net Weight: 40 kg
- Noise Level: <65 dB(A)
Electrical System
- Input Power Supply: 100–240V / 50Hz
- Output Power Supply: DC 29.4V / 1Ah
- Battery: Lithium 25.9V / 4.4Ah
- Electric Actuator: 8000 N
Dimensions
- Overall Length: 1185 ±10 mm
- Overall Width: 620 ±10 mm
- Overall Height: 128 – 187.5 ±10 mm
Outrigger (Leg) Dimensions
- Outer Width of Outrigger: 620 – 900 ±10 mm
- Inner Width of Outrigger: 505 – 790 ±10 mm
- Leg Opening Angle: 22°
- Height of Outrigger Use: 110 ±5 mm
- Max Depth of Outrigger Use: 770 ±10 mm
Lifting Range
- Boom Height Adjustment: 720 – 1640 ±10 mm
Wheels
- Front Wheels: 3" universal
- Rear Wheels: 4" universal with brake
Packing Size
- Carton Dimensions: 117.5 × 68 × 33.5 cm
