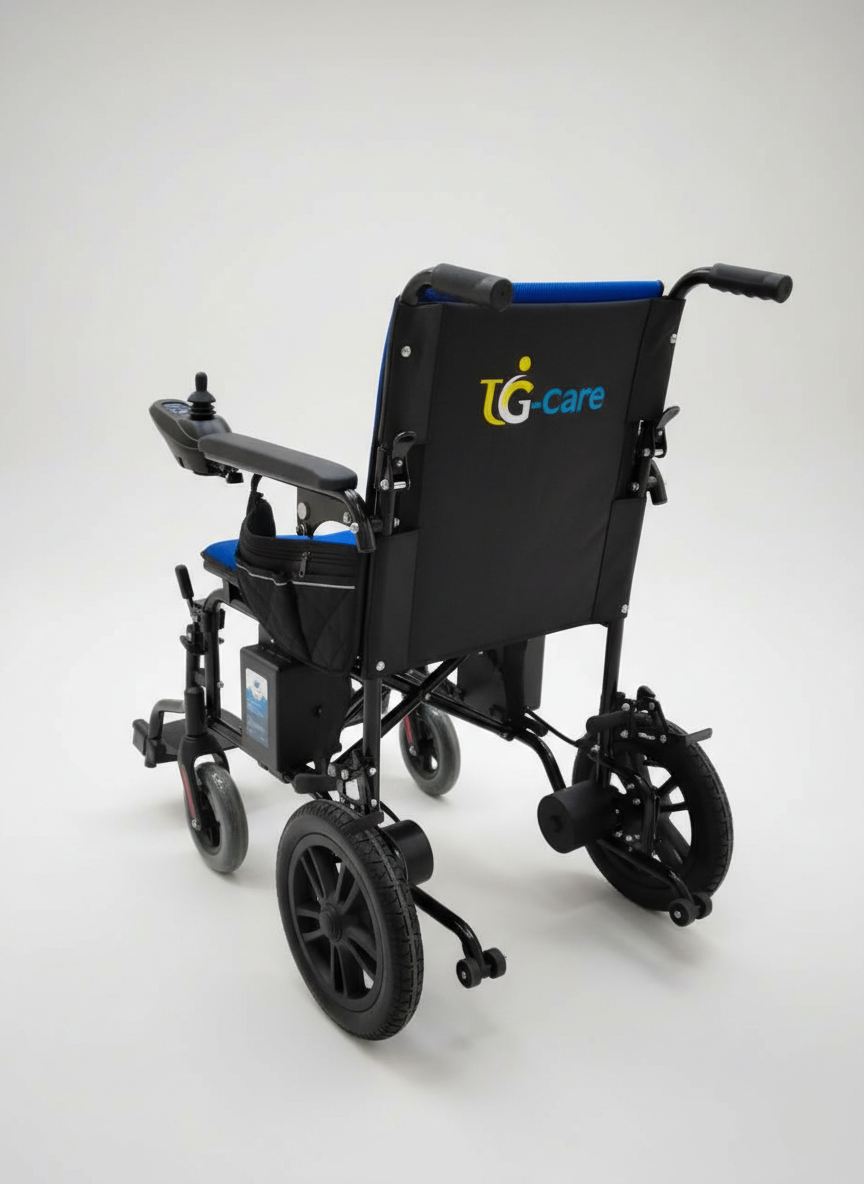

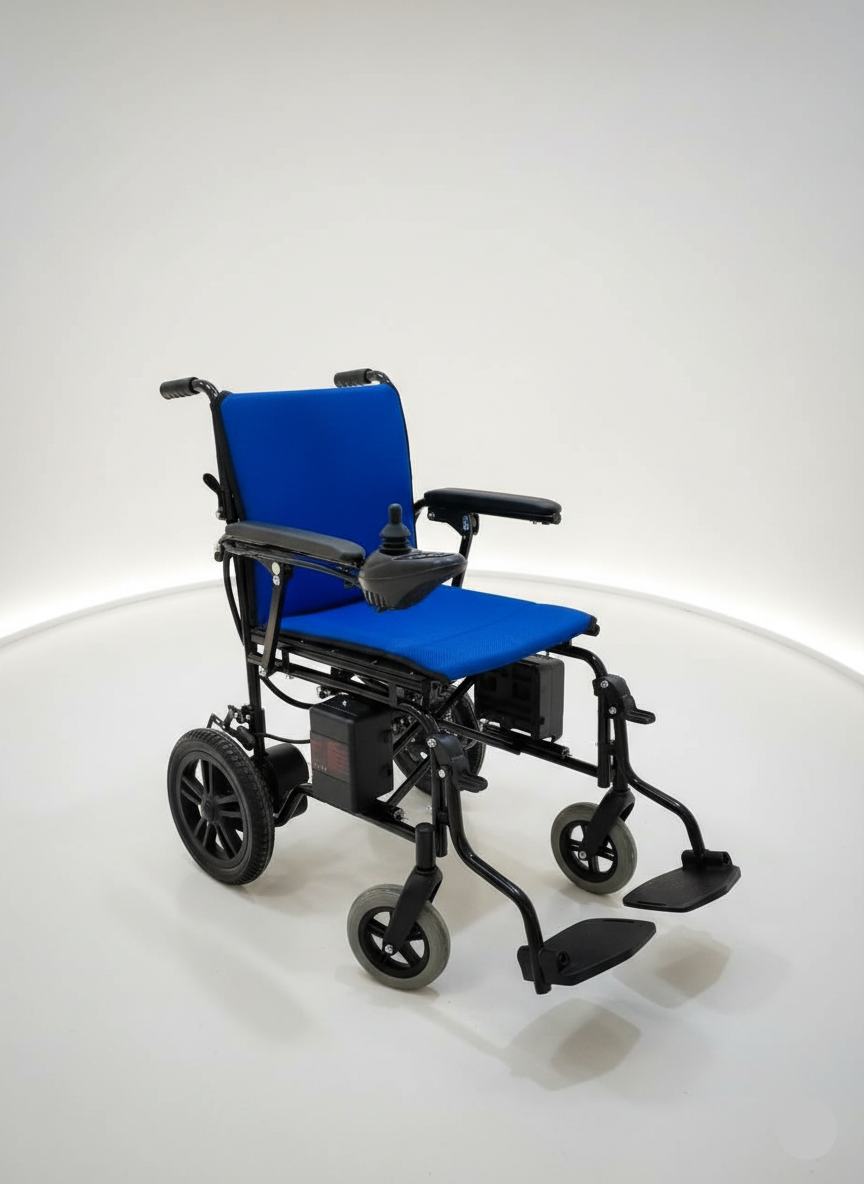

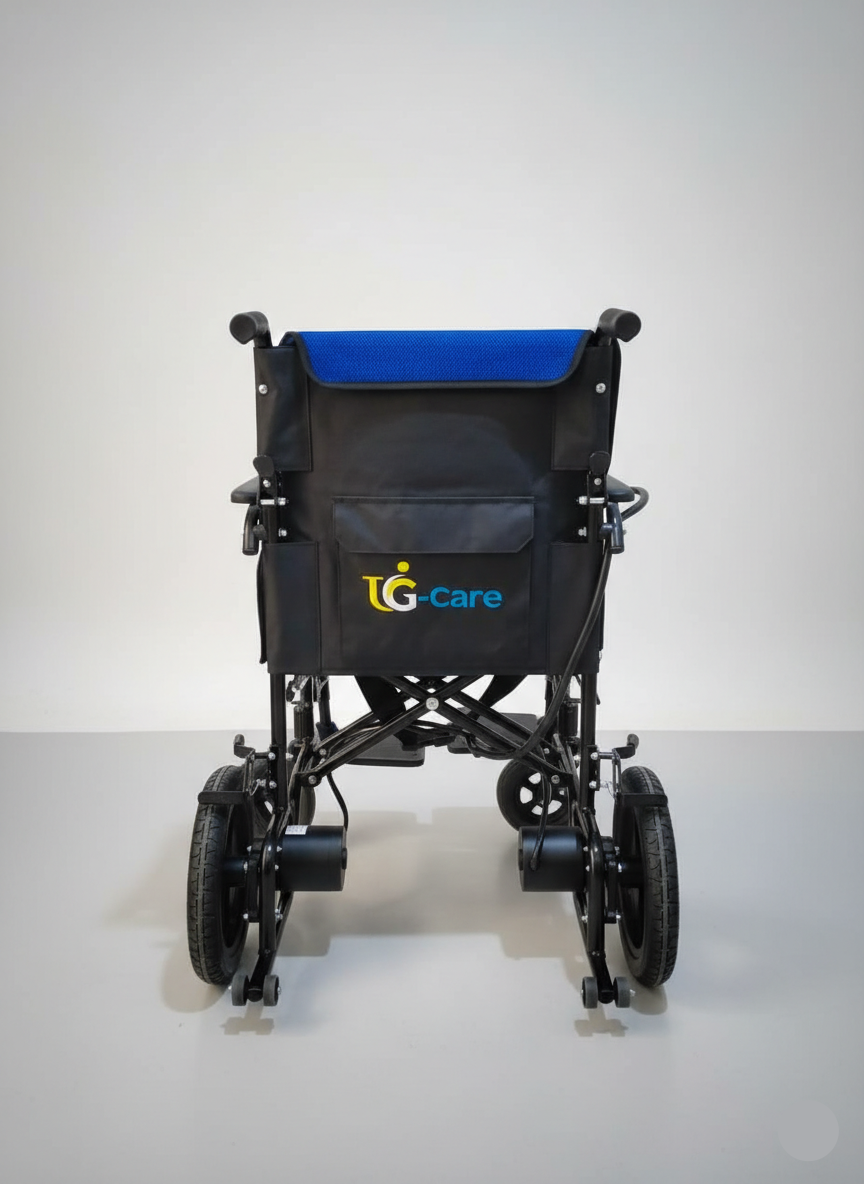

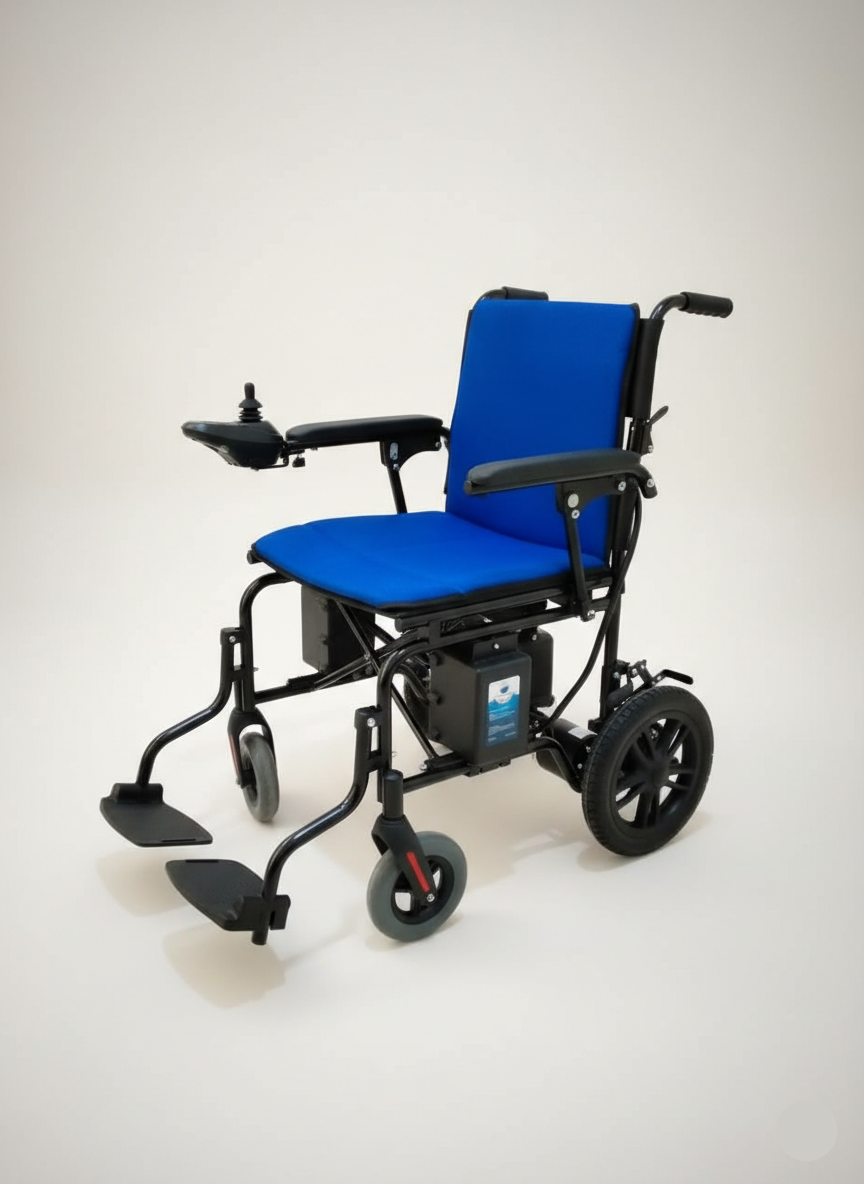

Electric Wheelchair with Side-Mounted Batteries "UGCare"
Electric Wheelchair with Side-Mounted Batteries "UGCare"
This electric wheelchair combines mobility and comfort with dual 250W motors delivering reliable performance. Powered by a robust 12V 12Ah battery system, it achieves speeds up to 6 km/h with a 20 km driving range per charge. The steel frame with liquid coating ensures durability, while solid PU tires provide stable traction. Featuring manual braking, an ergonomic backrest angled at 8°, and a 100 kg weight capacity, it accommodates various users. The compact folded dimensions (680 × 410 × 710 mm) facilitate transport and storage. At just 21 kg without batteries, this wheelchair balances portability with structural integrity, making it an excellent choice for daily mobility assistance.
Technical Specifications
- Motor: 250W × 2 pcs
- Battery: 12V 12Ah × 2
- Driving Range: Up to 20 km
- Brake System: Manual brake
- Frame Material: Steel with liquid coating
- Frame Color: Black
Wheels
- Front Wheel Size: 7 inches
- Rear Wheel Size: 12 inches
- Tire Type: Solid PU tires
Weight
- Net Weight: 21 kg (excluding batteries)
- Gross Weight: 30 kg
- Load Capacity: 100 kg
Dimensions
- Overall Width: 655 mm
- Overall Height: 900 mm
- Seat Width: 440 mm
- Front Seat Height (from ground): 475 mm
- Vehicle Width: 670 mm
- Folded Width: 400 mm
- Folded Size: 680 × 410 × 710 mm
Control & Performance
- Controller: 35A
- Backrest Angle: 8°
- Backrest Height: 410 mm
- Top Speed: 6 km/h
