Electric & manual 4 function bed
Electric & manual 4 function bed

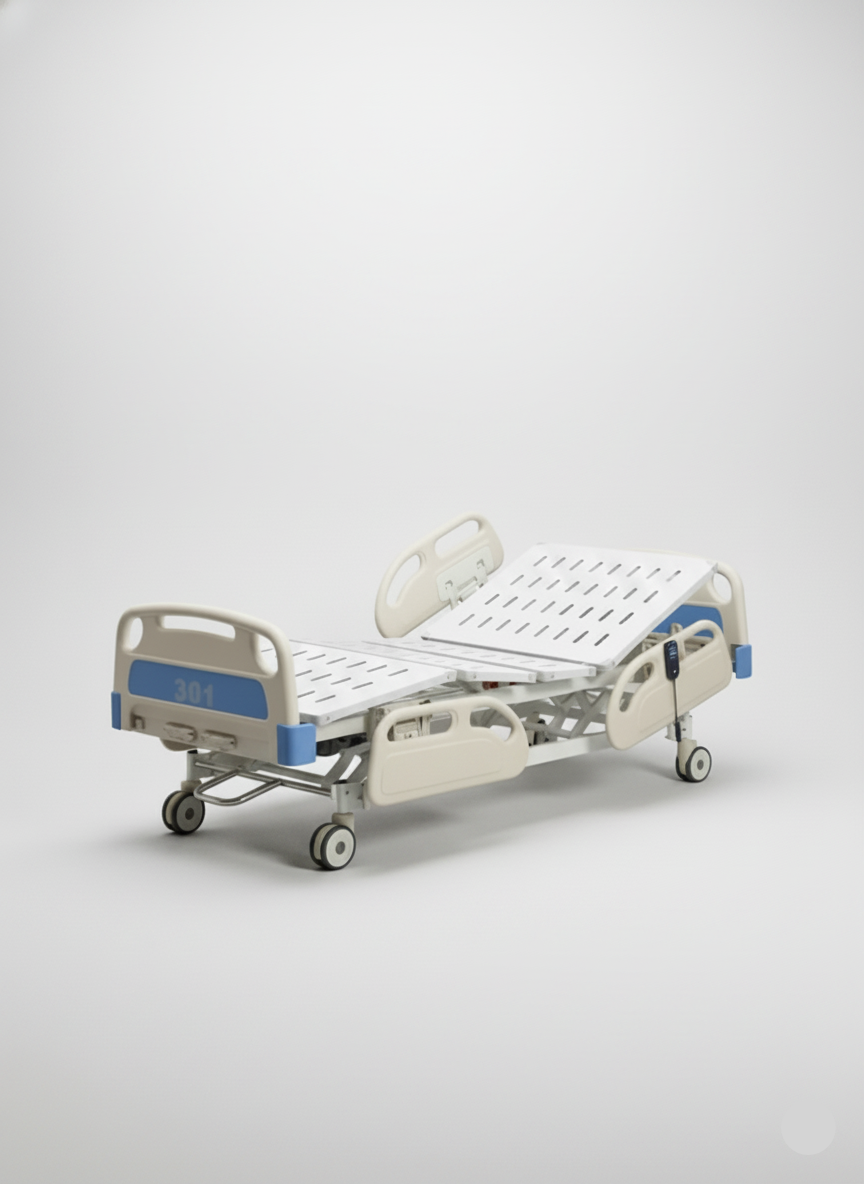

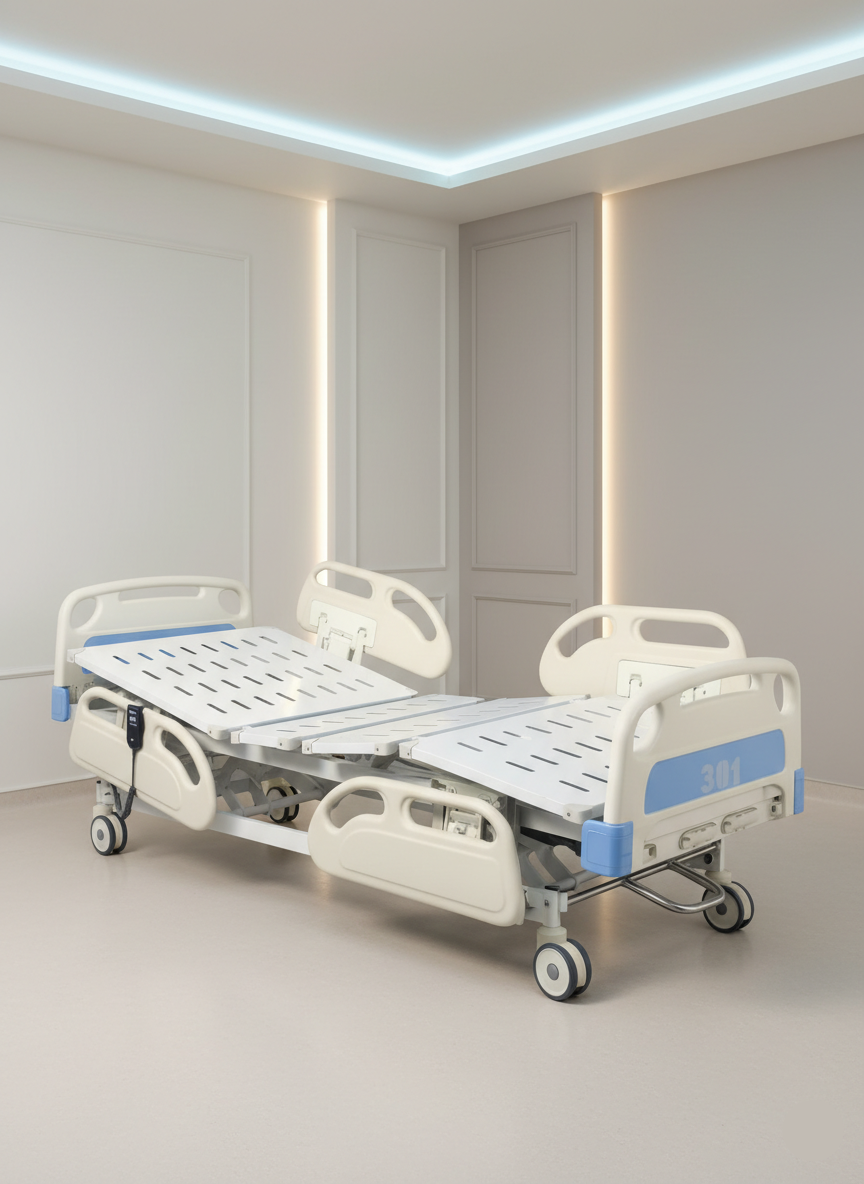

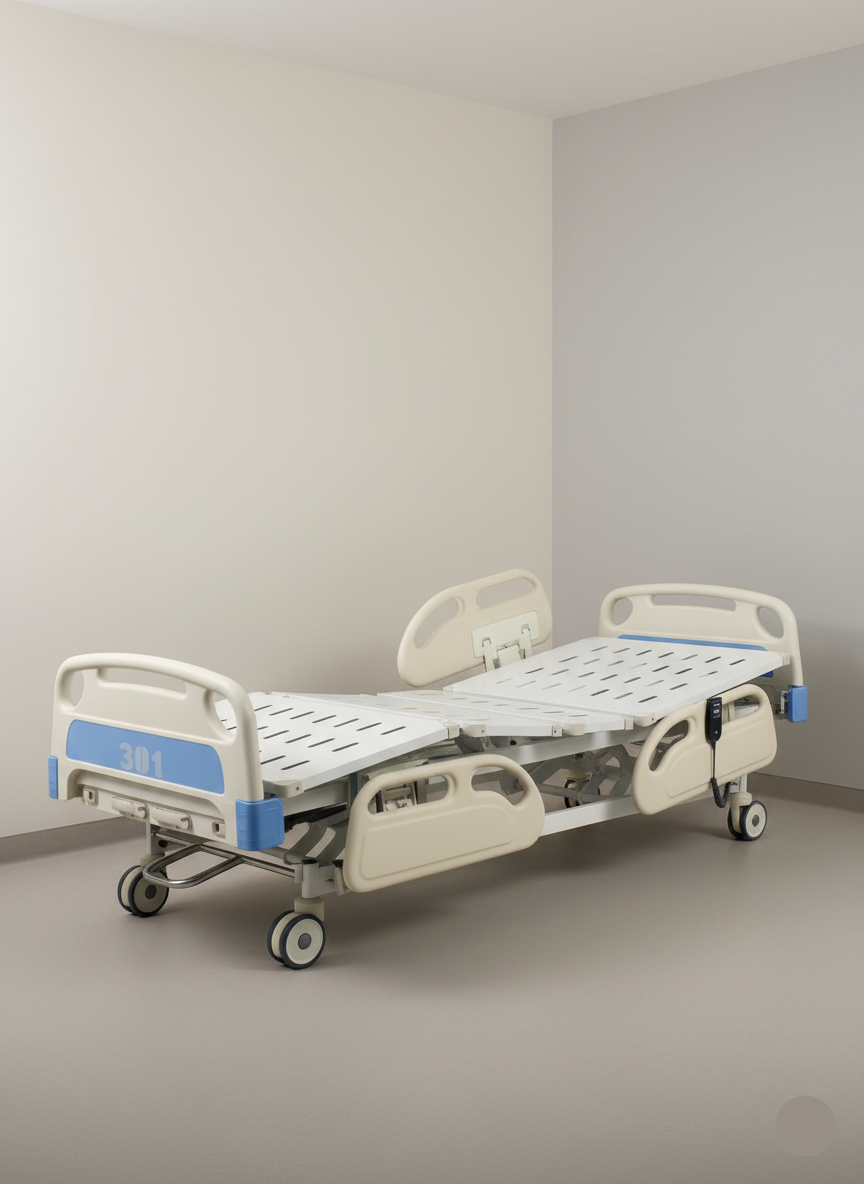

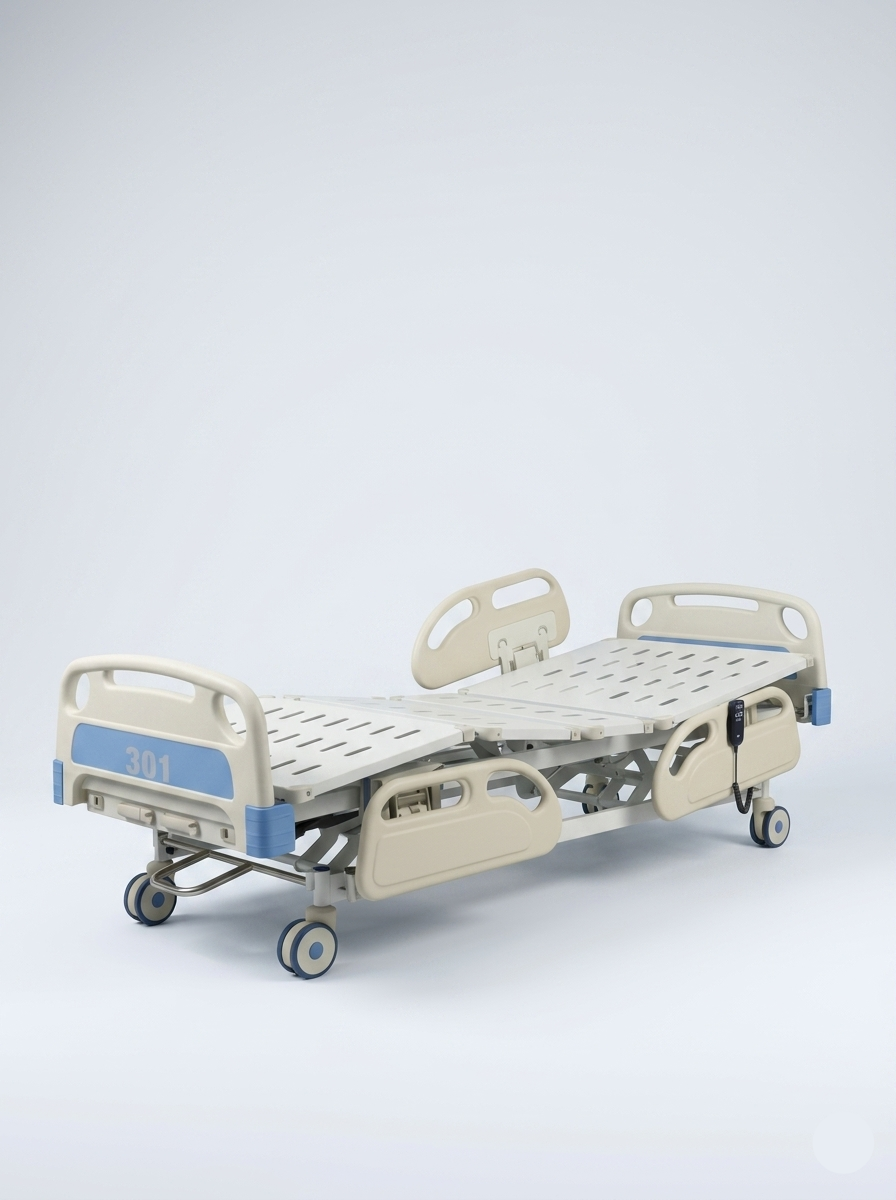

This professional-grade electric bed combines versatility with robust engineering for medical and care environments. Featuring three independent motors with 6000N capacity each, it delivers smooth, precise positioning across back (up to 70°), thigh (up to 35°), and foot (up to 11°) sections. The reinforced A3 steel frame with white powder coating ensures durability and easy maintenance, while the adjustable height range of 500–870mm accommodates various care scenarios. With a generous 220kg weight capacity, this unit supports extended use. Universal voltage input (100–240V) makes it adaptable to different facility requirements. Compact dimensions and efficient packing facilitate installation and transport.
Overall Dimensions
- Length: 2140 ±50 mm
- Width: 960 ±50 mm
Bed Board Size
- Length × Width: 1960 × 840 ±20 mm
Board Height from Floor
- Height Range: 500 – 870 ±20 mm
Reclining Angles
- Back Section: ≤ 70° ±5°
- Thigh Section: ≤ 35° ±5°
- Foot Section: ≤ 11° ±3°
Frame
- Material: A3 Steel
- Finish: White powder coated
- Tube Size: 58 × 29 mm
- Tube Thickness: 1.2 mm
Weight
- Net Weight (N.W.): 122 kg
- Gross Weight (G.W.): 131 kg
Motors
- Quantity: 3 pcs
- Specification: 24VDC – 6000 N
Electrical System
- Input: 100–240V ~ 50/60Hz Max 500VA
Safe Working Load
- Capacity: 220 kg
Packaging Dimensions
- Carton Size: 2120 × 990 × 530 mm
