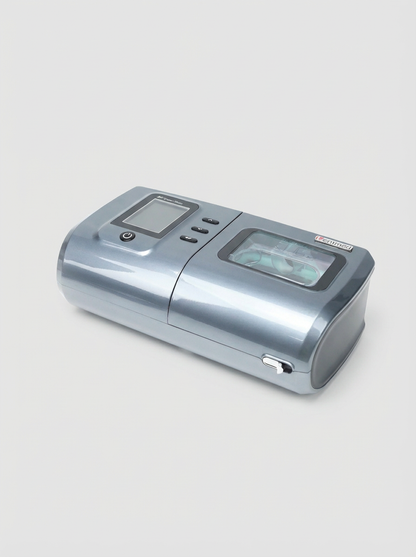

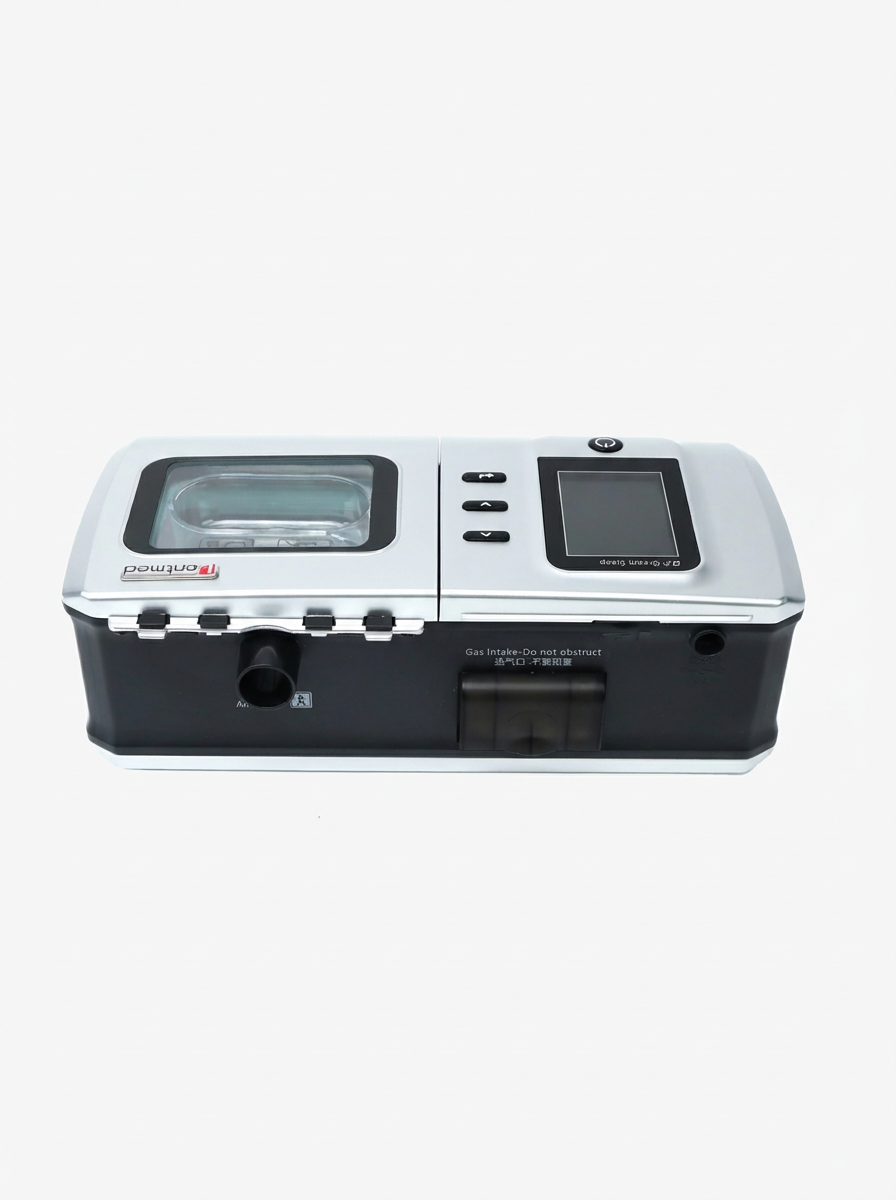

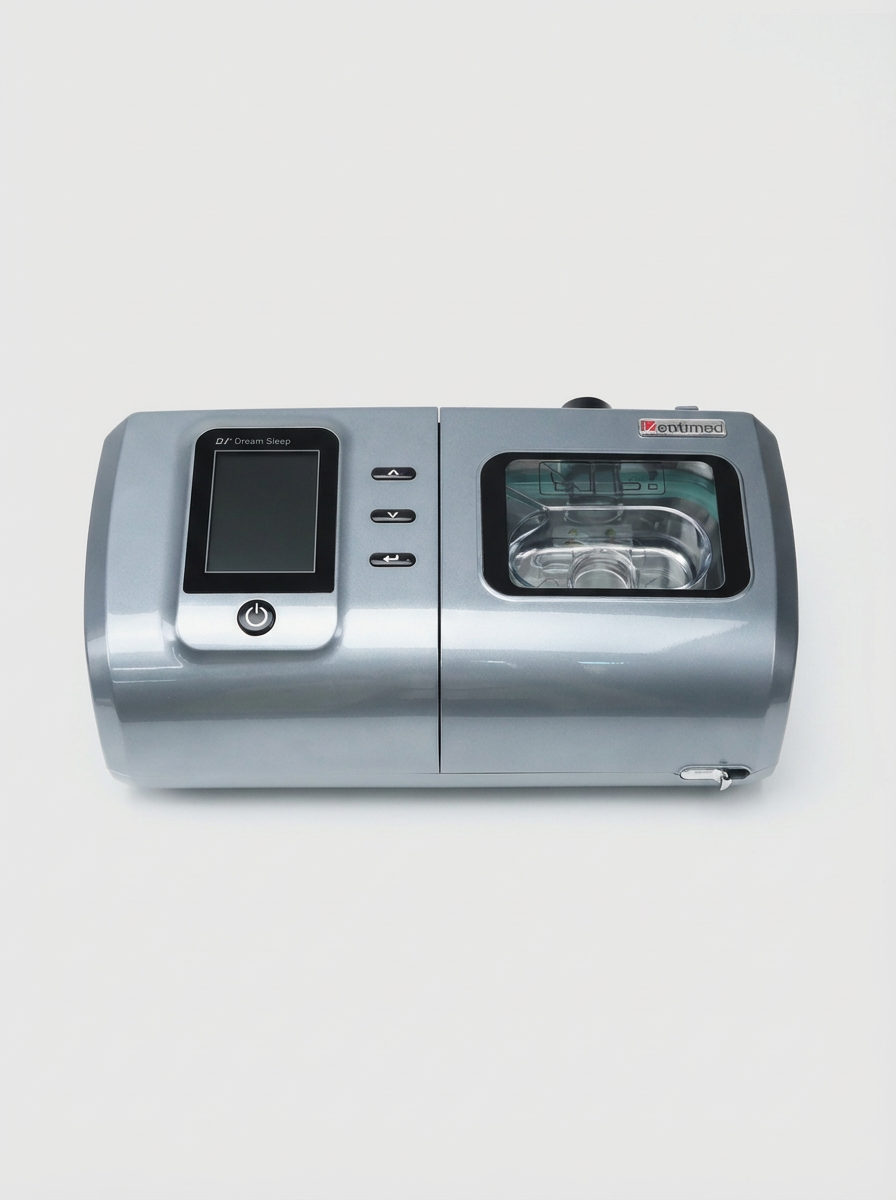

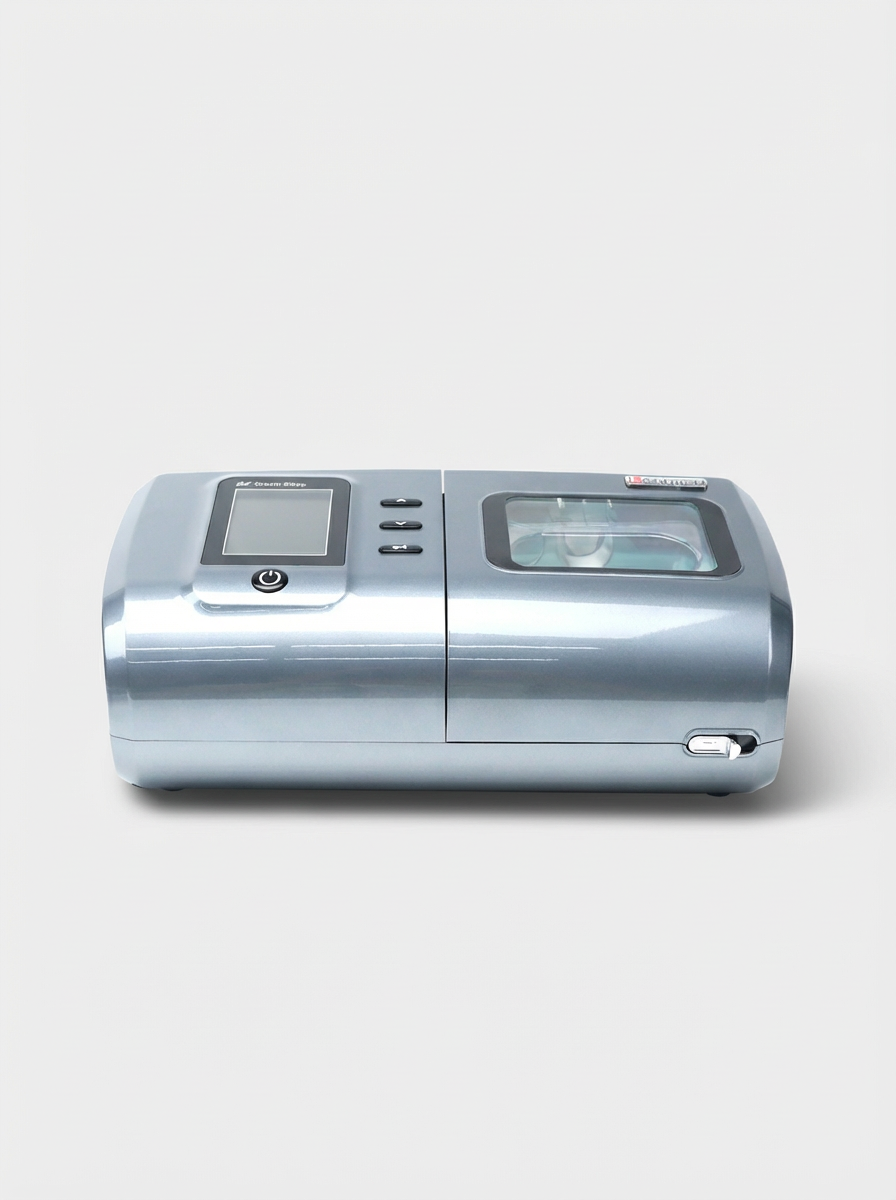

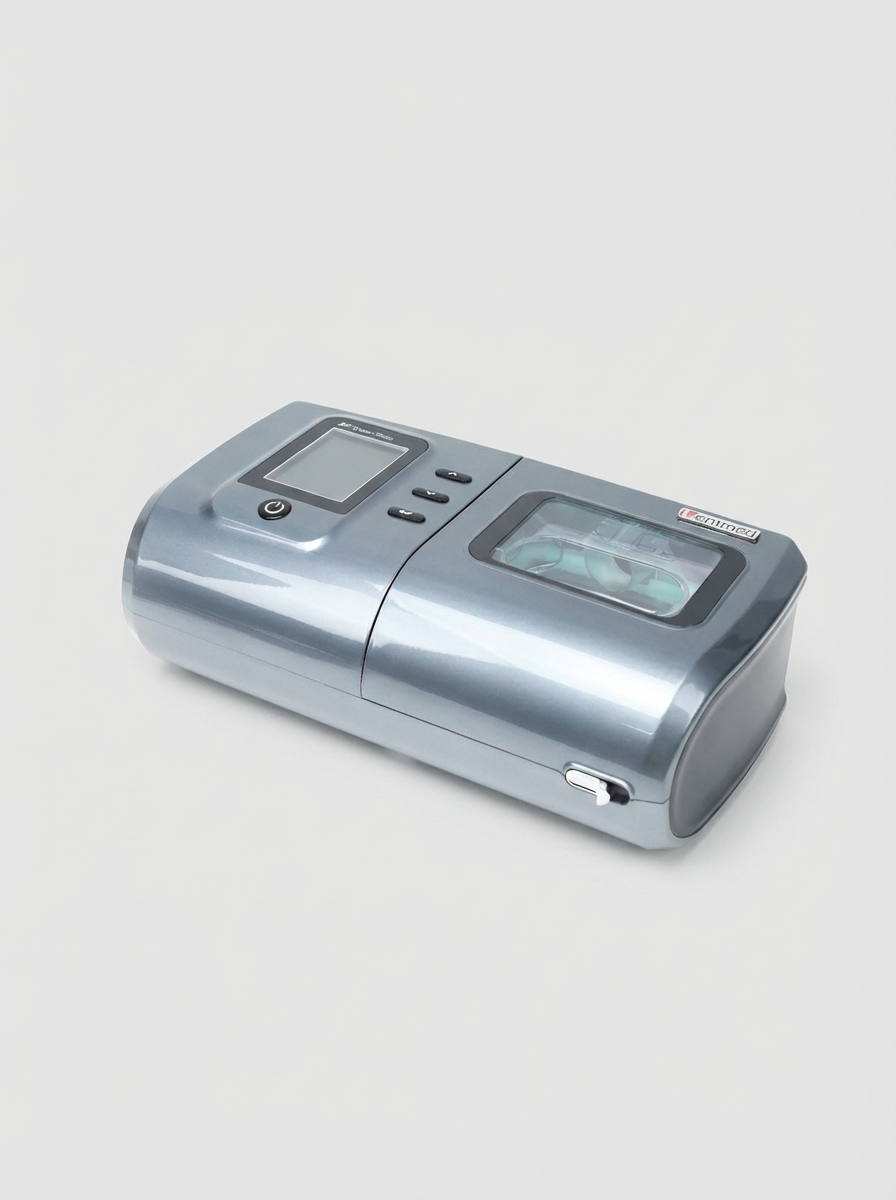

Bi-Level Device for Respiratory Disorders & COPD
A specialized device designed to treat sleep-related breathing disorders, operating with two different pressure levels for inhalation (IPAP) and exhalation (EPAP). It facilitates breathing and improves sleep quality, providing a more comfortable and stable breathing pattern.
Technical Specifications
- Operating Modes: CPAP, Auto, S, T, ST
- Pressure Range: 4–25 cmH₂O
- Inspiratory Pressure (IPAP): 4–25 cmH₂O
- Expiratory Pressure (EPAP): 4–20 cmH₂O
- Backup Respiratory Rate: 5–50 breaths/min (adjustable)
- Display: 2.8-inch TFT screen
- Humidifier: Built-in, heated
- Water Chamber Capacity: up to 220 ml
- Alarm System: Mask removal or power failure
Additional Features
- Automatic inspiration and expiration stimulation (1–5 levels)
- Adjustable expiratory sensitivity
- Air leak compensation
- Automatic altitude compensation
- Wake and respiratory event detection
- Automatic start and stop
Dimensions & Weight
- Dimensions: 28 × 14 × 9.5 cm
- Net Weight: 1.6 kg

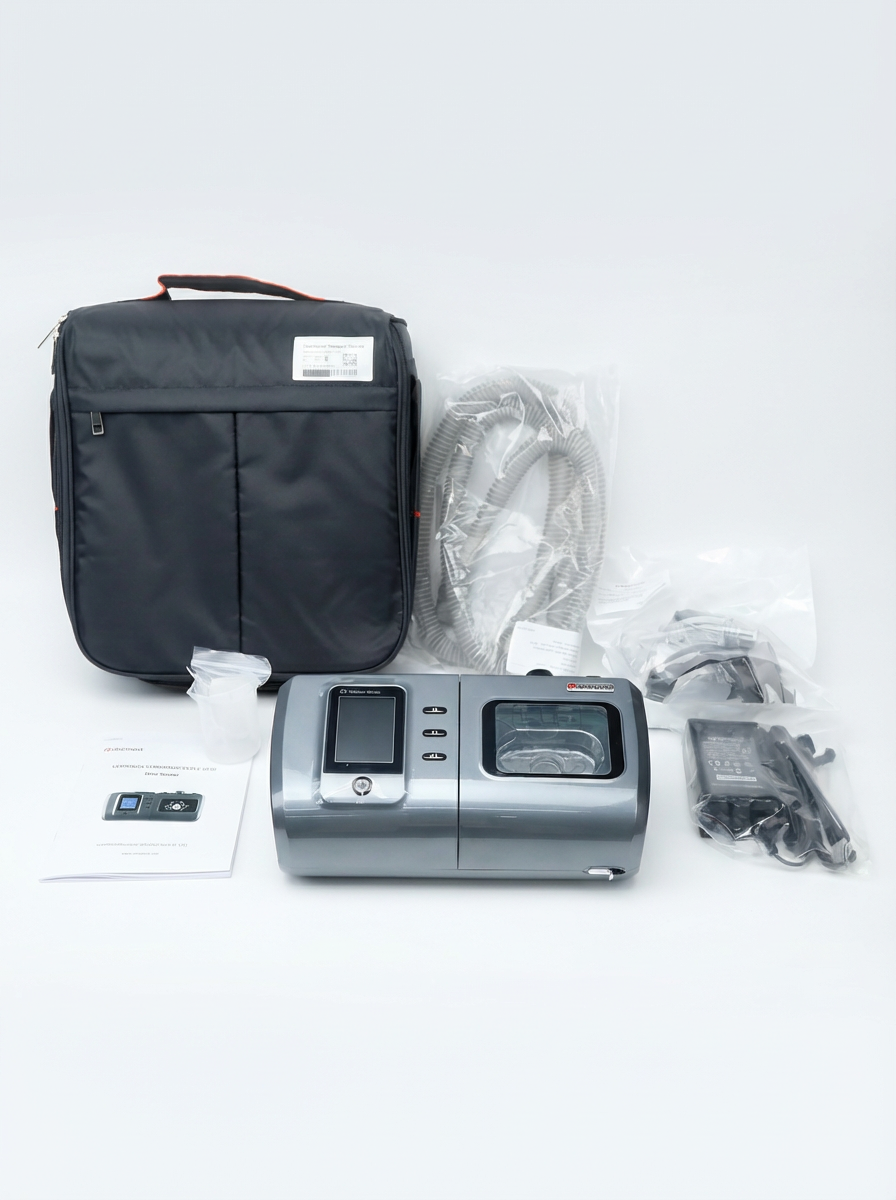

Package Contents
- BIPAP ST 25 device
- CPAP mask
- Mask hose
- Carrying bag
- Power adapter
- 5 air filters
- SD card
- User manual
- T- Junction
- Water Measuring Cup
